Miniature Barrels

Model 44, 46, 54, and 56

Our miniature barrels feature all molded construction and also include our all-around mesh design. They have their own motors, danglers, and replaceable cylinders. Available in C, C-1, or B mesh.

sterling05

®

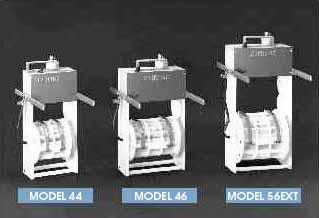

page60102

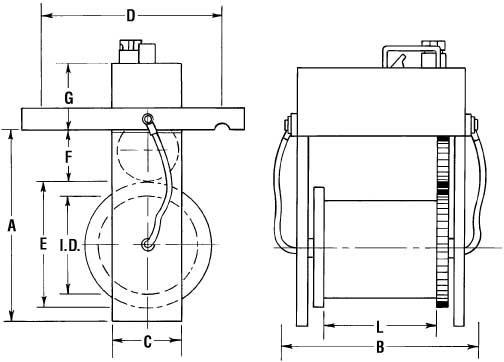

page60302

Specify “extended” after model number for additional 3” depth on side panels.

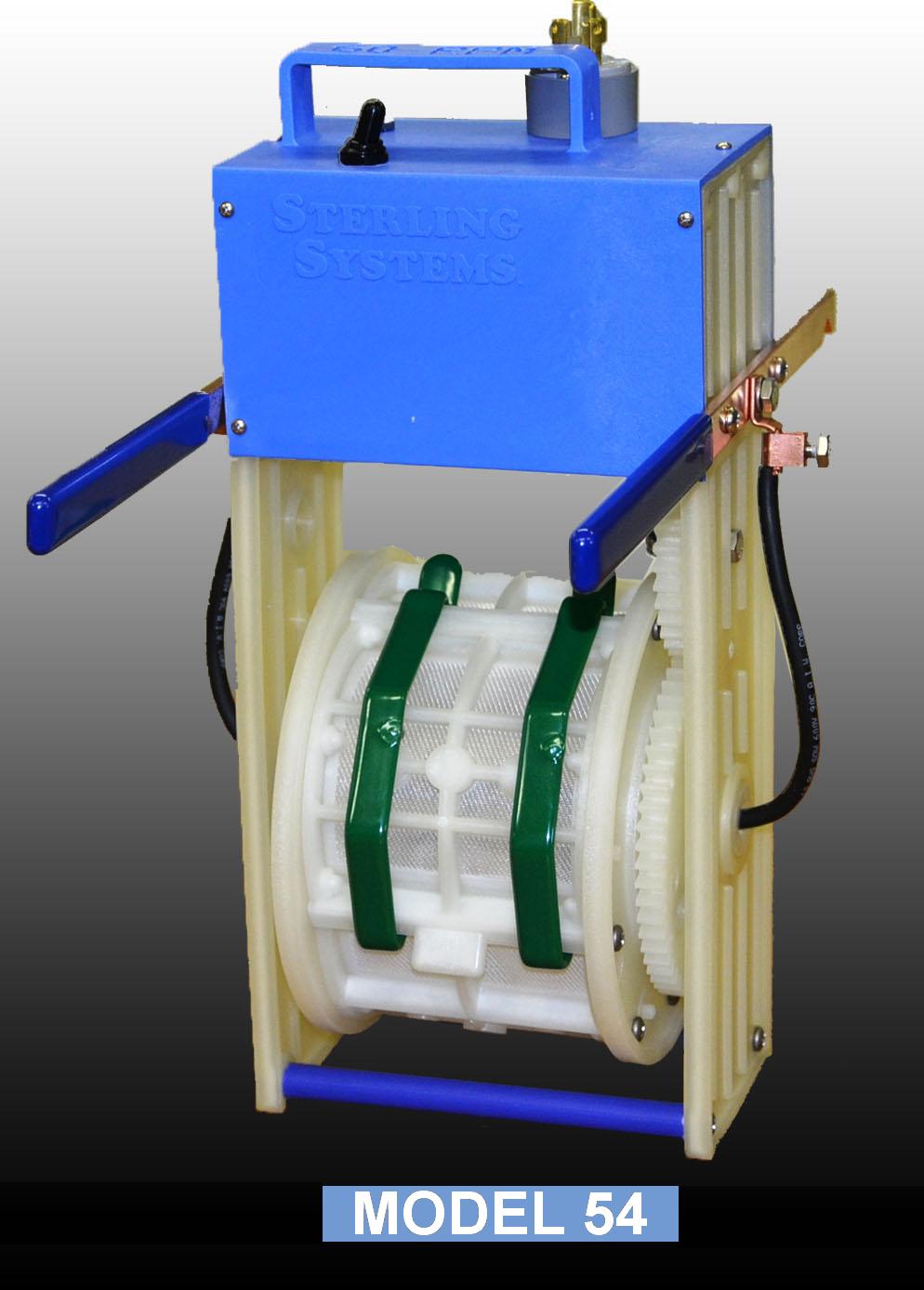

54-barrel-gray-background

5 X 4 Barrel

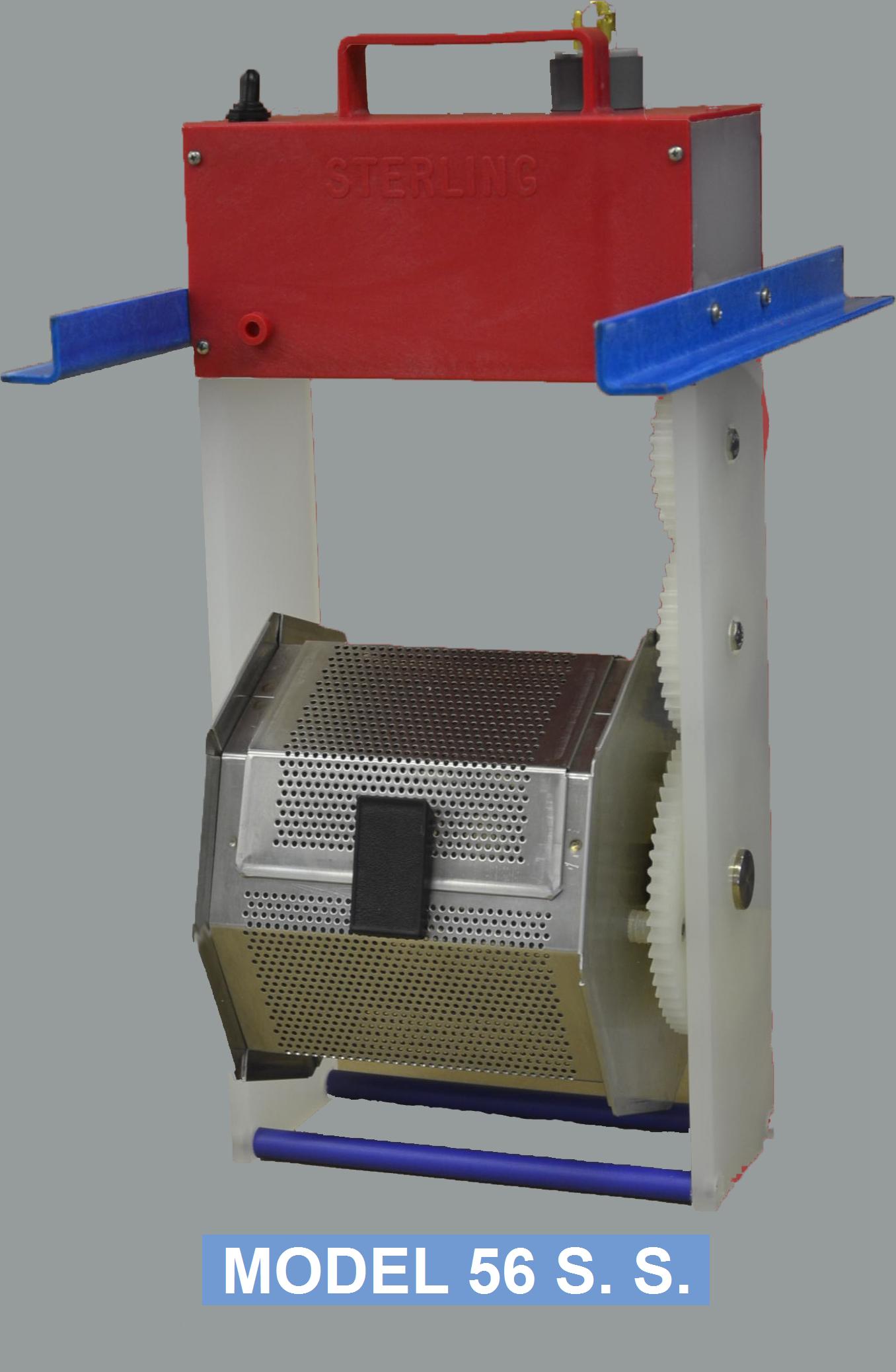

56-ss-3a
46-66-c1

6 X 6 Small Barrel

Custom

Miniature

Barrels

Model HD-24 Super

This is the complete horizontal mini-plating barrel for your operation, featuring our unique 2½” X 4” basket, which is available in single, double, or triple configurations. This series is great for miniature production runs. Designed with mesh ends and constructed to provide uniform coverage, good mixing action, and positive part retention. No door or section joints are present to trap tiny parts. Rugged construction is ideal for small lot production runs. Miniature barrels are designed with stainless hardware below solution level for most applications. Titanium hardware is available for strong acid baths. Models available with choice of B, C, and C-1 mesh.

5 X 6 Barrel in Stainless Steel

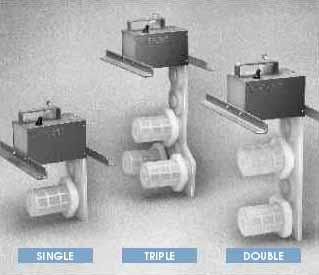

page60202

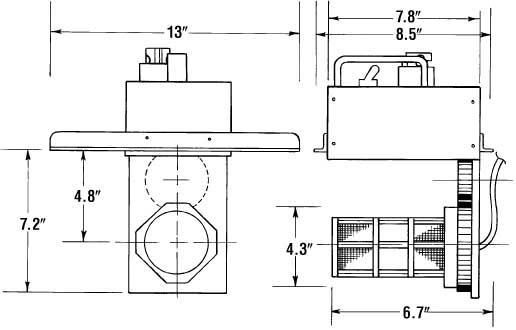

page60402

Model

Cylinder
Size
I.D. x L
(IN.)

Approx.
No Load
Weight

A*

B

C

D
Max.

E
Over
Clamps

F*
Cathode
Rod to
Cylinder

G

Motor RPM
30/60

Load Size
1/2 Full
(CU. IN)

Cylinder
Speed

44

4 x 4

101/8

12

10/20

17

46

4 x 6

8

101/8

12

10/20

25

54

5 x 4

8

101/8

12

10/20

40

56

5 x 6

101/8

12

10/20

47
